How to Replace the Pump Belt and Blades on a Hustler Raptor in 7 Steps

If you own a Hustler Raptor, routine maintenance will keep it running longer and better. Two of the most important tasks are mower blade replacement and pump belt replacement. Whether you utilize your Raptor seasonally or weekly, these replacements can make a big difference in performance and safety. This step-by-step guide covers both processes step by step so that you can do them with confidence in your own garage.

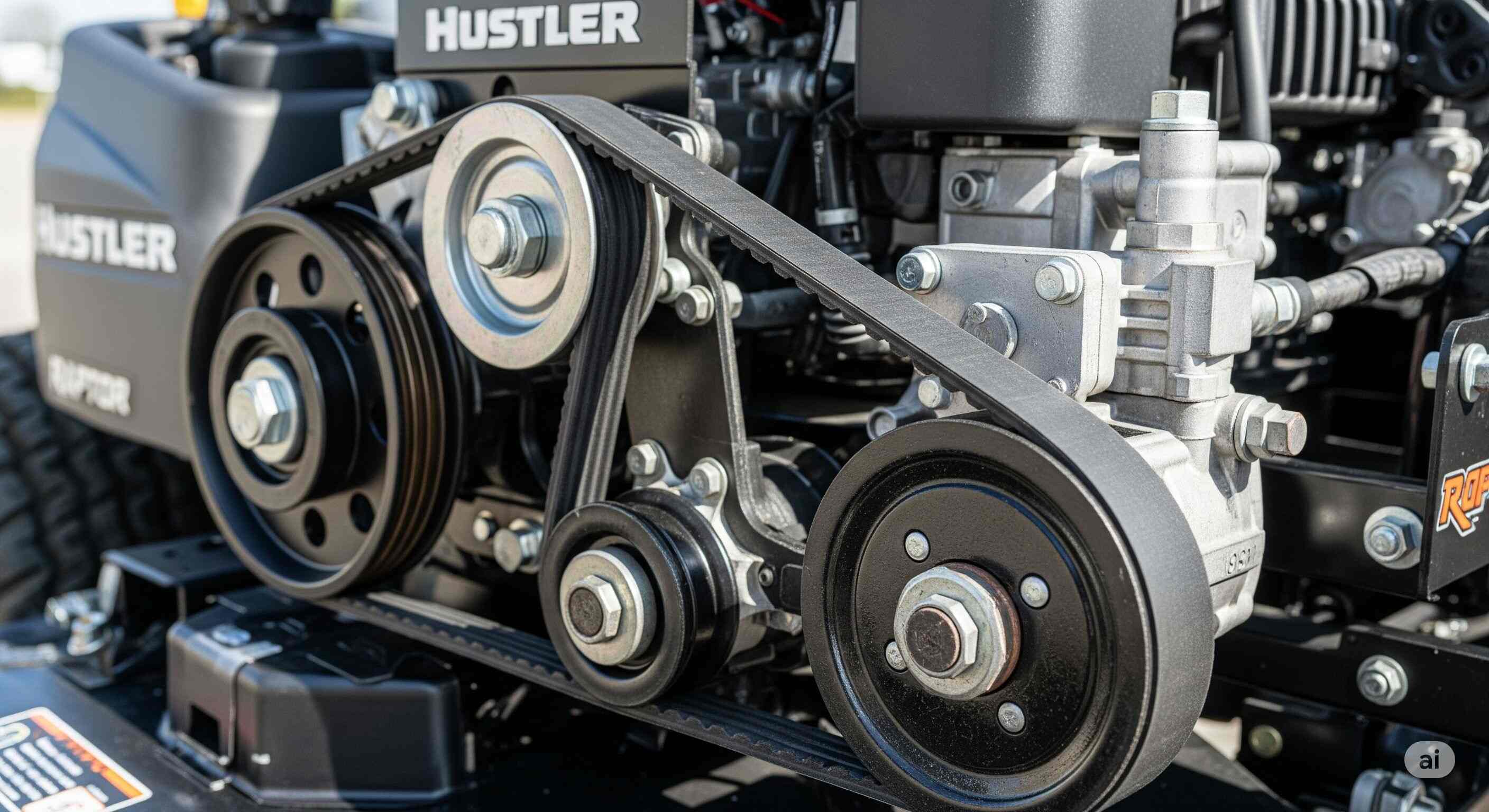

Changing the Pump Belt on a Hustler Raptor: Simple Steps

The pump belt transfers power from the engine to the hydraulic system. If your Raptor is losing drive power or making strange noises, the pump belt may be worn or damaged. Tools You Will Need:

1. New pump belt (for your Raptor model)
2. Socket wrench (with 13/16″ and possibly ¾″ sockets)
3. Extension bar (for better reach, tight underframe areas)
4. Floor jack or ramps (to safely lift the mower and gain access to the belt area)
5. Ratchet or breaker bar (to release tensioner pulley and remove belt)
6. Work gloves (for protection when handling the belt)
7. Safety goggles (optional but recommended for any task under the machine)

Steps:

1. Ensure Safety First: Place your mower on level ground, turn it off, and pull the spark plug. Let the engine cool down.
2. Lift the Mower: Use a jack or mower lift to raise the mower to reach the bottom of the frame where the pump belt is.
3. Remove the Belt Cover: Unscrew the bolts securing the belt guard beneath the frame.
4. Loosen the Tensioner: Loosen the idler pulley slightly with your socket wrench, which removes tension from the belt.
5. Remove the Old Belt: Carefully slide it off the pulleys. Take note of the routing of the belt.
6. Install the New Belt: Route the new belt just like the old one. Check the alignment one more time before tightening the tensioner.
7. Reassemble and Test: Replace the belt guard, mow on a lower height, reconnect the spark plug, and take the engine out for a test ride.

If you're planning to replace the pump belt or blades on your Hustler Raptor, get the right parts in hand. On our website, you'll find OEM-quality blades, belts, and replacement kits designed for Hustler mowers. We'll save you time and ensure a perfect fit—so you can perform your maintenance with confidence and keep your mower in top condition.

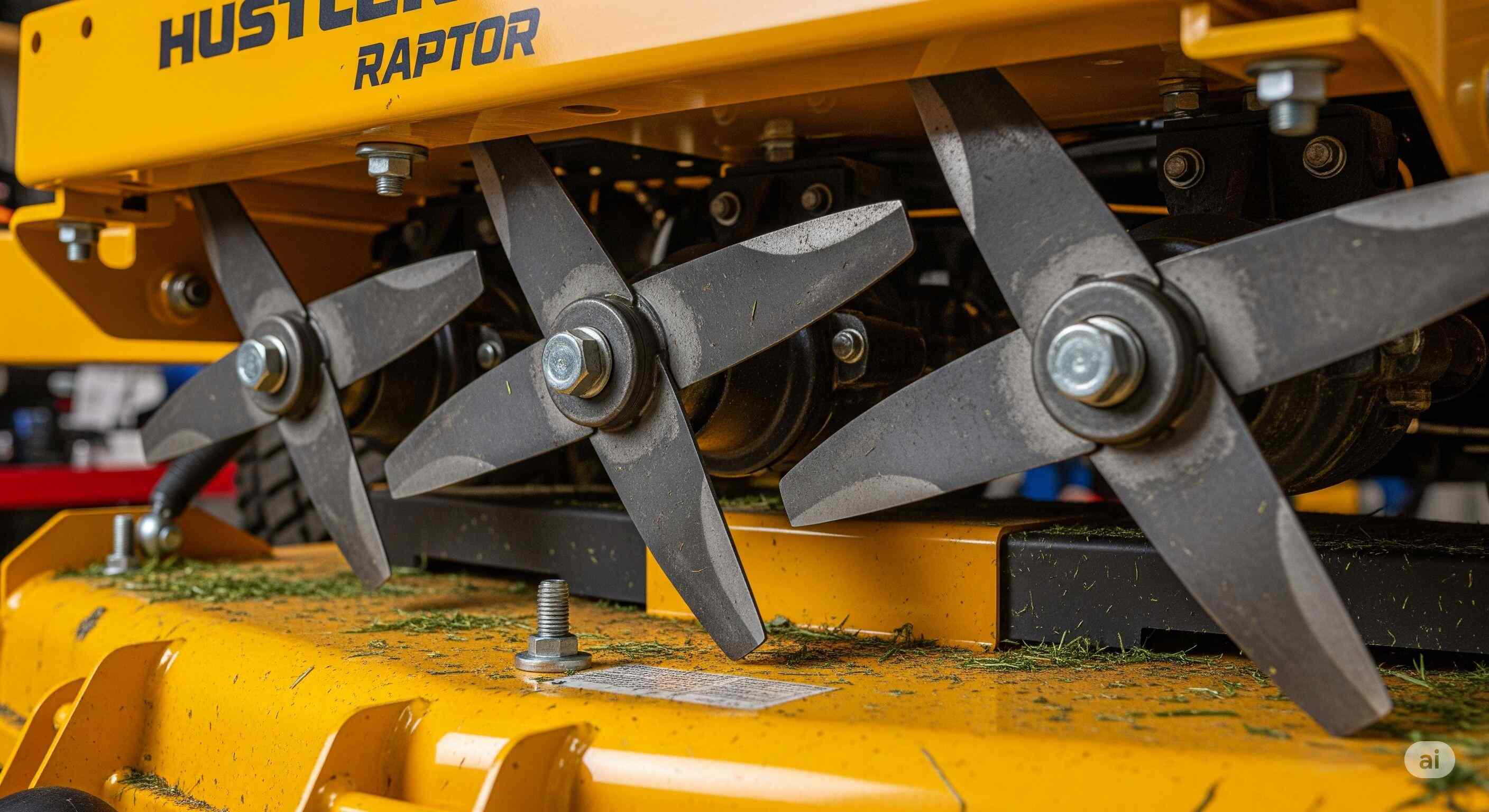

How to Change Blades on a Hustler Raptor in 7 simple steps

Damaged blades will shred grass rather than cut it cleanly, leaving lawns unhealthy. If your cuts are uneven or ragged, it's time to change the blades. Tools You Will Need:

• Socket wrench with 3/4″ or 13/16″ socket for blade bolts
• Blade immobilizer tool or a block of wood for holding the blade in position
• Replacement blades compatible with the Hustler Raptor SD
• Gloves to safeguard hands
• Shop rag to wipe spindle and bolt surfaces

Steps:

1. Disconnect Spark Plug: This will avoid the possibility of the engine turning over by accident while repairing.
2. Lift Mower Deck: Lift the front end with ramps or a jack.
3. Secure Blades: Secure a blade block or insert a wood piece in between the blade and the mower deck.
4. Remove Blade Bolts: Loosen and take out every blade bolt with a socket wrench. Consider the washers.
5. Install New Blades: Have cutting edge in correct direction (usually towards front of mower).
6. Tighten to Spec: Tighten bolts to the manufacturer's specified torque with a torque wrench.
7. Test and Inspect: Remove the spark plug and mow for a few minutes to ensure correct operation.

Final Tips

Always check your Hustler Raptor model manual for belt and blade specifications.

• Use OEM parts for optimal performance and durability.
• Routine inspection every 25–50 hours of use can prevent larger issues from developing.
